Inside FabCon / Oklahoma City

The machines
behind the work.

Explore our machining centers, vertical turning lathe, plasma table, and band saw. Find the equipment and capacities relevant to your next job.

Discuss your part

Horizontal Machining Center

HAAS EC-1600

HAAS EC-1600 — Horizontal Machining Center

Large-frame horizontal machining center for heavy parts, precision milling, drilling, boring, and multi-side machining.

Specifications

X travel
64 in
Y travel
50 in
Z travel
32 in
Table
64 in × 36 in
Integrated 4th axis / platter
30 in diameter
Max part swing
50 in
Max table / platter capacity
10,000 lb

Final capacity depends on part shape, fixture, tooling, and setup.

CNC Vertical Turning Lathe

Hyundai Wia LV 800R

Hyundai Wia LV 800R — CNC Vertical Turning Lathe

Built for large round parts, heavy turning, face work, boring, and industrial components.

Specifications

Approx. max turning diameter
31.5 in
Approx. max machining length
31.5 in
Approx. swing
35 in
Max Spindle Speed
2,000 RPM

Final capacity depends on part shape, fixture, tooling, and setup.

Vertical Machining Center

HAAS VF6

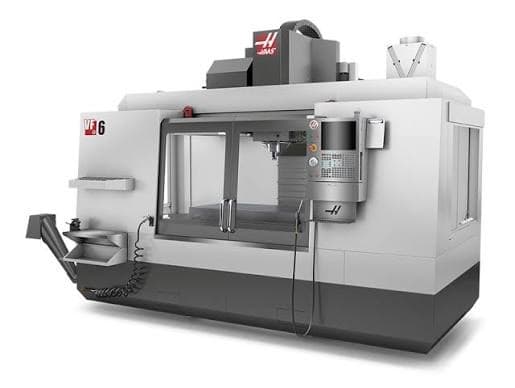

HAAS VF6 — Vertical Machining Center

Large vertical machining center for plates, brackets, housings, fixtures, and general CNC milling work.

Specifications

X travel
64 in
Y travel
32 in
Z travel
30 in
Table
64 in × 28 in
Max table load
4,000 lb

Specifications are based on the standard Haas VF-6/40 configuration. Usable capacity may vary depending on tooling, fixturing, machine options, and setup.

CNC Plasma Cutting Table

Torchmate CNC Plasma Table

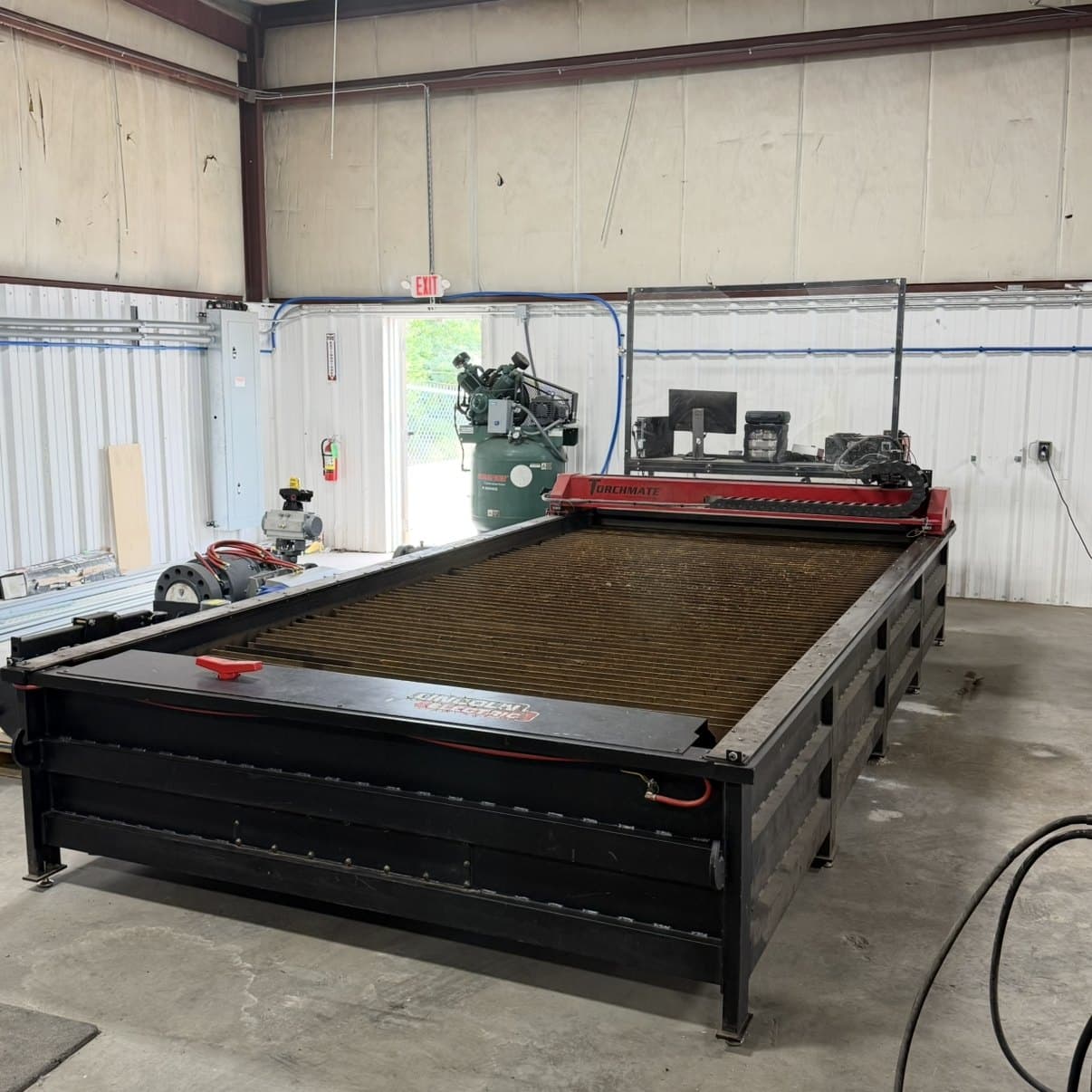

Torchmate CNC Plasma Table — CNC Plasma Cutting Table

Custom-built large-format CNC plasma table for sheet and plate parts — brackets, gussets, tabs, signs, flanges, and fabrication components up to nearly 14 feet long.

Specifications

Work width
85 in
Work length
165 in
Cut thickness
Plate up to 3/4 in

Cut quality and thickness depend on material type, consumables, and setup.

Automatic Mitering Band Saw

Cosen C-650MNC

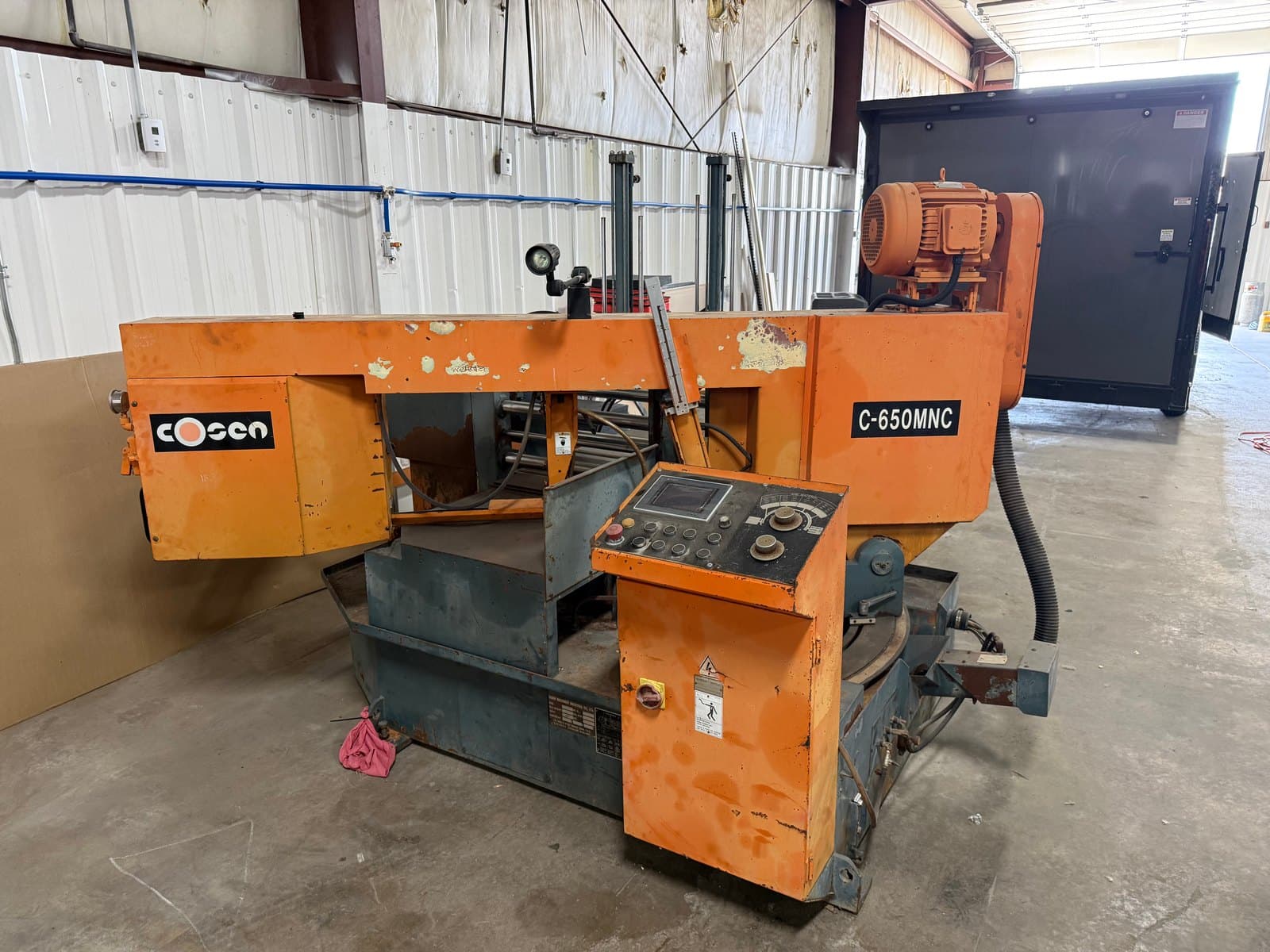

Cosen C-650MNC — Automatic Mitering Band Saw

Programmable horizontal band saw for accurate, repeatable cut-off and miter cuts — the front end of every machining and fabrication job in the shop.

Specifications

Round capacity
16.5 in
Rectangular capacity
15 in × 25.6 in
Miter cutting
0° to +60°
Control
Programmable NC — up to 100 jobs, auto kerf compensation
Blade motor
7.5 HP

Capabilities shown are based on manufacturer specifications and may vary depending on material, blade selection, and machine setup.

Planning a job?

Let’s confirm the fit.

Dimensions are the starting point. Part shape, workholding, tooling, and setup determine what a machine can accommodate. Send your drawing and we’ll discuss the requirements.

Tell us about your part
